Anti-CRISPR Proteins: A Solution to Precision and Control in Genome Editing

CRISPR-Cas technologies have transformed genome editing by offering a precise and efficient way to change genetic material. However, the tremendous efficiency of these systems comes at a cost: the possibility of off-target impacts. Off-target effects occur when the CRISPR-Cas system cuts DNA at locations other than the intended target, causing unexpected genetic changes. Off-target mutations can alter normal gene function, resulting in unpredictable and potentially detrimental therapeutic effects.

Anti-CRISPR proteins (Acr) are naturally occurring inhibitors of CRISPR-Cas systems identified in bacteriophages that infect bacteria and use CRISPR-Cas as a defense mechanism. Researchers can improve their control over CRISPR-mediated genome editing by using these inhibitors. Acr proteins improve the specificity and safety of CRISPR applications, making them critical for genetic research and medicinal development.

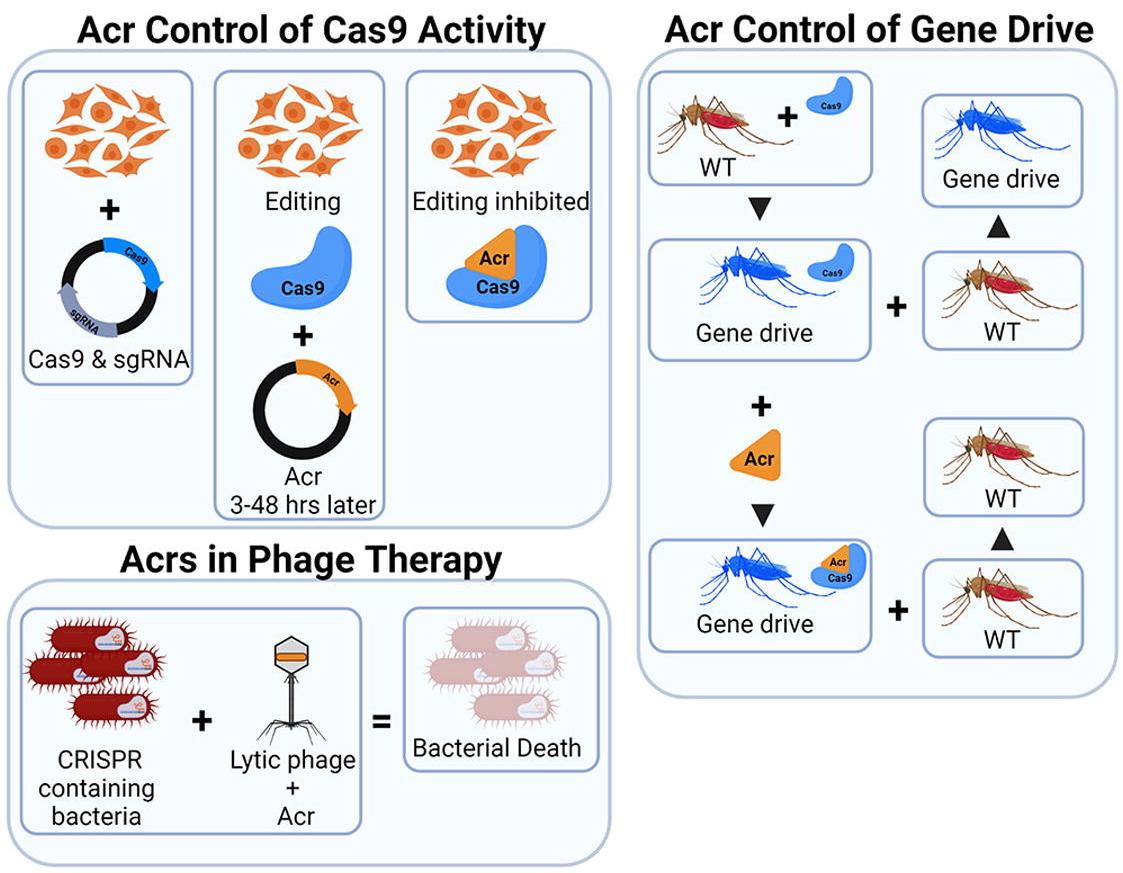

Figure 1. Acr proteins have been widely used in the biotechnology field to control gene editing systems to minimize off-target effects and achieve spatiotemporal conditional restrictions. (Kraus C, et al., 2023)

Mechanisms of Acr Proteins

Anti-CRISPR proteins inhibit the enzymatic activity of CRISPR-Cas systems through various mechanisms. They achieve this by specifically binding to different components of the CRISPR machinery, disrupting its function. Here's a detailed look at how Acr proteins operate:

1. Direct Binding and Inhibition

Acr proteins can inhibit CRISPR-Cas effectors by directly binding to different domains of the Cas proteins, which disrupts their normal function. Examples include:

• AcrIIA4: This protein binds to the RuvC and HNH domains of SpyCas9. By binding to these domains, AcrIIA4 prevents SpyCas9 from cutting target DNA. This interaction interferes with both the DNA binding and catalytic activities of Cas9.
• AcrIIC1: It binds to various Cas9 homologs, including Nme1Cas9, CjeCas9, and GstCas9, by interacting with a conserved site on the HNH domain. This broad interaction enhances AcrIIC1's ability to inhibit multiple Cas9 proteins.

2. Competitive Inhibition

Some Acr proteins inhibit CRISPR-Cas systems by competing with Cas proteins for binding to target DNA sites.

• AcrIIA2: This protein competes with Cas9 for binding to target DNA, effectively blocking Cas9 from engaging with and cutting the DNA.

3. Mechanism-Specific Inhibition

Different Acr proteins inhibit CRISPR-Cas systems through distinct mechanisms tailored to specific systems:

• AcrVA1: This protein inhibits Cas12a by cleaving its guide RNA (gRNA). This cleavage prevents Cas12a from effectively binding to the gRNA and cutting DNA. The cleavage of gRNA can also be used to detect Cas12a RNPs by quantifying the cleaved gRNA through PCR.

4. Domain-Specific Binding

Acr proteins can also target specific domains within Cas proteins:

• AcrIIC3: This protein binds to the RuvC domain of Nme2Cas9, directly interfering with its cutting function. This mechanism is specific to certain Cas9 homologs.
• AcrIIC4: Similar to AcrIIC3, AcrIIC4 binds to a different site on the RuvC domain of Nme2Cas9, employing a distinct binding mechanism.

5. Gene Drive Suppression

Acr proteins can be utilized to control the spread of gene drive systems:

• AcrIIA2 and AcrIIA4: These proteins effectively suppress gene drive systems based on SpyCas9, preventing their unintended spread. They can be designed to be inducible, allowing for controlled suppression and enhancing system safety.

6. Designing Complex Genetic Circuits

Acr proteins are also useful in creating sophisticated genetic circuits or biosensors:

• AcrIIA4 and AcrIIA2: These proteins can be employed to build logic gate circuits, such as AND-NOT gates, to regulate gene expression and signal transduction. Such circuits can produce specific gene expression patterns in response to various stimuli, with broad applications in synthetic biology and biosensor development.

Applications of Acr Proteins in Genome Editing

1. Controlling CRISPRa/i Systems

CRISPR activation (CRISPRa) and CRISPR interference (CRISPRi) systems use non-nuclease active Cas proteins to regulate gene expression precisely. By binding to dCas9 or dCas12a proteins, Acr proteins can effectively control CRISPRa/i system activation or inhibition. For instance, AcrIIA4 is widely used to suppress CRISPRa/i systems based on dSpyCas9 by blocking Cas9's DNA binding. AcrVA1 with dCas12a demonstrates potential for regulating various CRISPR systems.

2. Optimizing Base Editors

Base Editors (BEs) enable precise base conversion without generating double-strand breaks by combining Cas9 with cytidine deaminase. Acr proteins can modulate base editor activity, enhancing safety and accuracy. AcrIIA2, AcrIIA4, and AcrIIA5 inhibit SpyCas9-based base editors, reducing off-target editing. AcrIIC3 and AcrIIC4 provide similar control for Nme2Cas9-based base editors.

3. Designing Self-Inactivating Viral Vectors

Self-inactivating viral vectors prevent continued CRISPR activity after editing, minimizing off-target effects. Incorporating Acr proteins like AcrIIA2 and AcrIIA4 in adenoviral vectors expressing SpyCas9 can overcome self-targeting challenges, improving vector production efficiency.

4. Designing Complex Genetic Circuits

Acr proteins are instrumental in creating sophisticated genetic circuits that respond to external signals or internal conditions to regulate gene expression. For example, logic gate circuits constructed using AcrIIA2 and dSpyCas9 can achieve complex gene regulation and signal responses, with significant potential in synthetic biology and biosensor development.

5. Improving Detection Technologies

Acr proteins offer the potential to enhance detection methods for genome editing technologies. Their specific binding to Cas effectors can be leveraged to develop highly sensitive detection techniques. Detection methods using AcrIIA4 and AcrIIC1 can capture and measure various Cas proteins, providing efficient detection through microfluidic devices and antibody-based assays.

Creative Biogene: Revolutionizing Gene Editing with Anti-CRISPR Technology

Acr proteins provide versatile tools for regulating CRISPR-Cas systems through direct binding, competitive inhibition, mechanism-specific suppression, domain-specific interactions, and gene drive control. Their diverse and specific mechanisms enhance genome editing safety and precision while broadening application possibilities. As understanding of Acr protein mechanisms and applications deepens, their use will expand further, driving innovation in genome engineering and synthetic biology. Creative Biogene is in the forefront of advancing gene editing technologies, particularly through the novel use of anti-CRISPR proteins. As the difficulty of off-target effects in CRISPR-Cas systems grows, Acr proteins appear to be a possible approach for improving genome editing precision and control. Our cutting-edge technologies and experienced help in this field are intended to improve your gene editing results and advance your research and development objectives.
